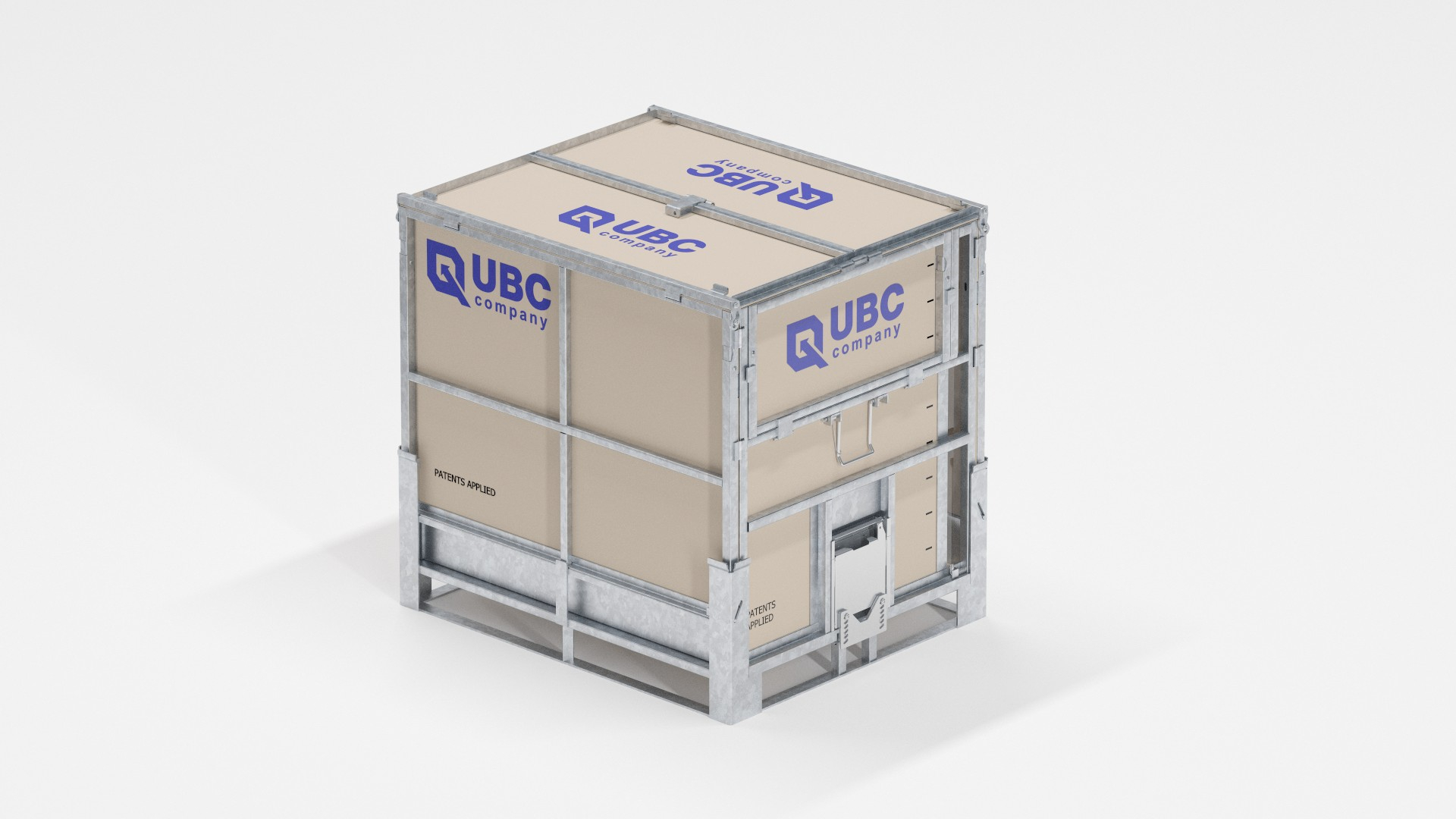

UBC Universal - IBC Container 1000L

UBC Universal - IBC Container 1000L is a solution with a unique design with a globally patented self-locking system, specially designed for the storage and transport of liquid materials.
Customization options
adjustment of dimensions, volume and functionality, addition of the customer's logo, the container can be made in several color alternatives
Do you want to become a sales representative in your region? Contact us.

PRODUCT BENEFITS

Effective handling, high resistance
Minimal maintenance, long-term durability
4-way pallet base
Stackability

PRODUCT DESCRIPTION

UBC Universal 1000L IBC container is a solution with a unique design with a globally patented self-locking system, specially designed for the storage and transport of liquid materials.

To satisfy market requirement, we have developed advanced features of the foldable UBC Universal 1000L IBC container. This includes a fully foldable closing 50:50 lid, a front discharge system with our universal cassette that is compatible with all existing discharge valves of all liner bags available on the market.

A huge advantage is the adjustable discharge hose bracket support integrated into the pallet base. The drip tray can hold up to one liter of material. Thanks to a system for capturing leaked material, we prevent contamination of the workplace and keep it safe. The bracket support is compatible with any discharge device.

Easily cleaned and stored, meets all hygienic standards for food, chemical and cosmetic industry.

The biggest advantages of the container:

  • Patented USLS (UbC self-locking system)
  • The container can be locked in one place
  • Universal cassette for all discharge valves available on the market
  • Adjustable discharge hose bracket support with a drip tray
  • Foldable and locking split lid
  • The container is also usable for dry materials (both loose and solid)
  • Produceability from different materials, universality of use
  • Sight glass- offers a visual check of the container's filling status
  • Discharge hose bracket support with a drip tray

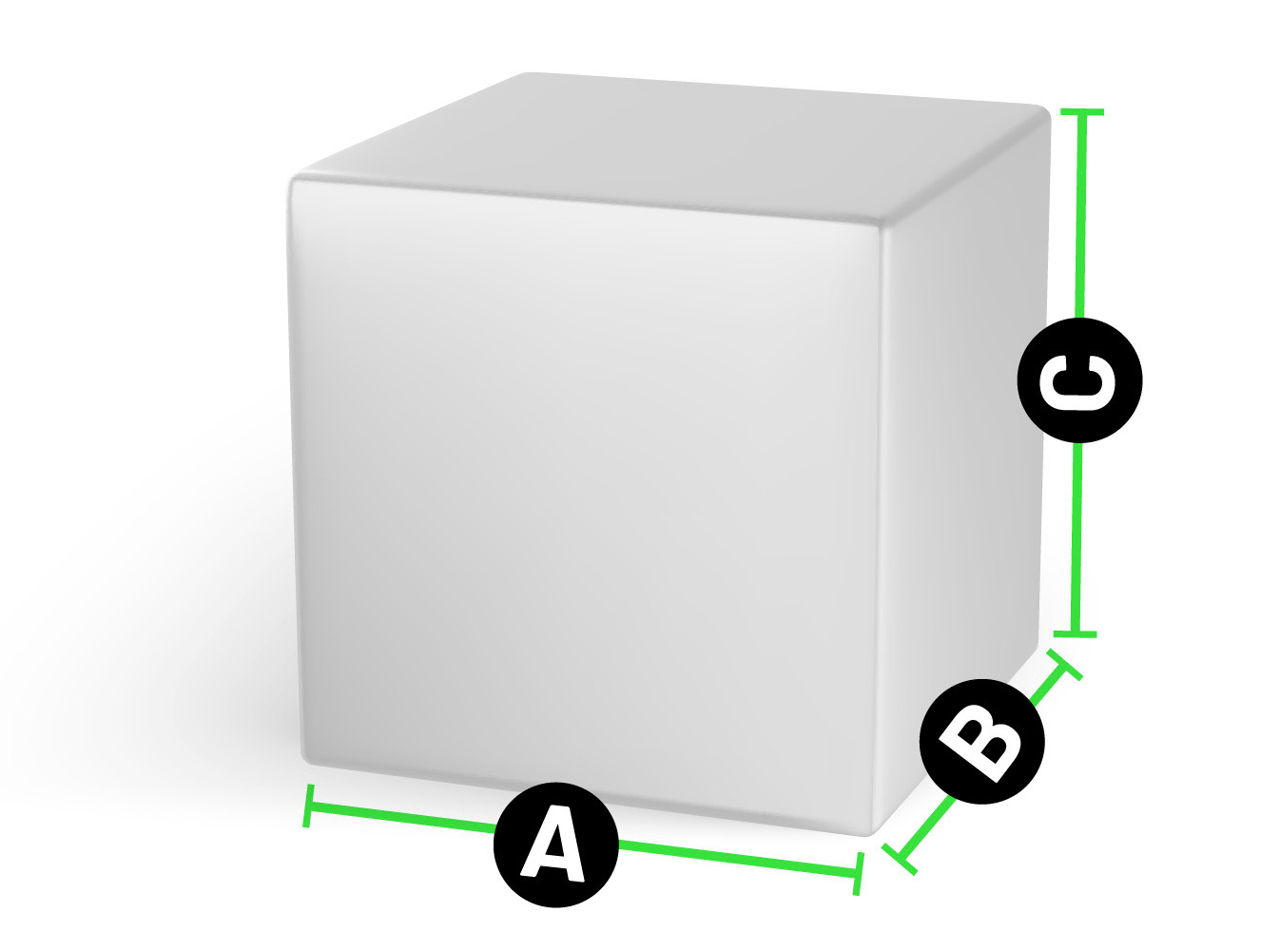

Specification

Width (A)
1010 mm / 39,76 inch
Length (B)
1210 mm / 47,64 inch
Height (C)
1160 mm / 45,67 inch
Volume
1035 l / 228 gallon
Empty weight
135 kg / 298 lb
Load capacity
1400 kg / 3086 lb
Internal dimensions W x L x H 930 x 1126 x 991 mm / 36,61 x 44,33 x 39,02 inch

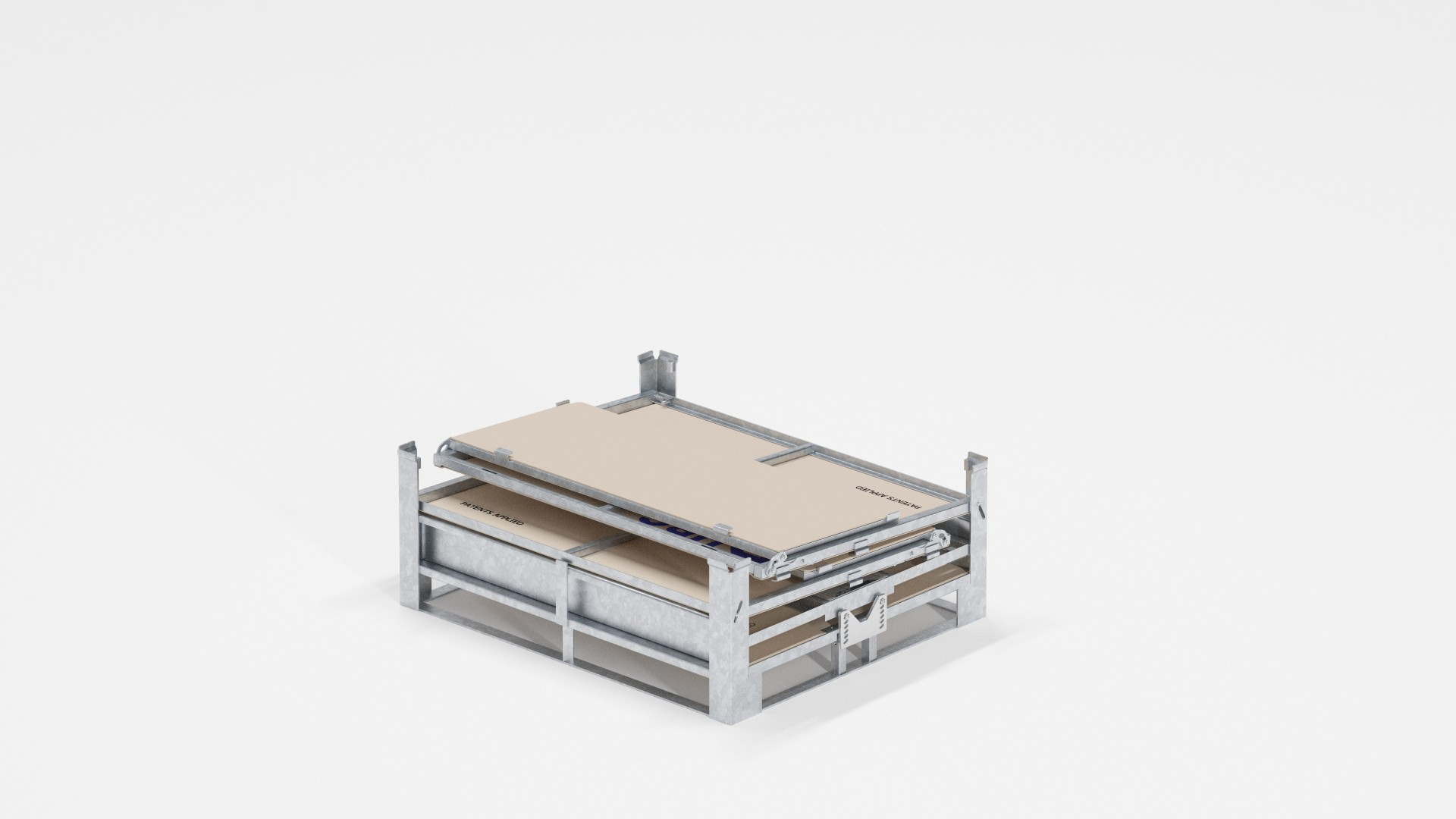

Dimensions of the folded product W x L x H 1010 x 1210 x 447 mm / 39,76 x 47,64 x 17,6 inch
Empty weight 135 kg / 298 lb
Working temperature from -25 to +60 °C / from -13 to 140 °F
Folding ratio 1:2,5
Maximum static stacking 5 fully loaded units on top of each other
Maximum dynamic load 2 fully loaded units
Material galvanized steel S235, food grade popypropylen
Standard colors zinc gray/gray
Product options adjustable use of the container also for dry materials (both loose and solid), usable also in automated production lines with tipping equipment, automated cleaning is possible, produceable also from stainless steel

APPROPRIATE USE

Liquid materials
